Sunplug Agent on Docker

For a NAS or mini-PC that already runs containers and stays on.

Running it

The image is published for x86 and ARM. The machine must be on the same network as your inverter.

Docker Hubsunplugapp/sunplug-agent

docker run -d --name sunplug-agent --network host \
  -v sunplug-agent:/data --restart unless-stopped \
  sunplugapp/sunplug-agent:latest

Then open http://<machine>-agent.local:8787 from a browser on your home network, where <machine> is the machine's hostname, or use its IP address. The page finds your inverter.

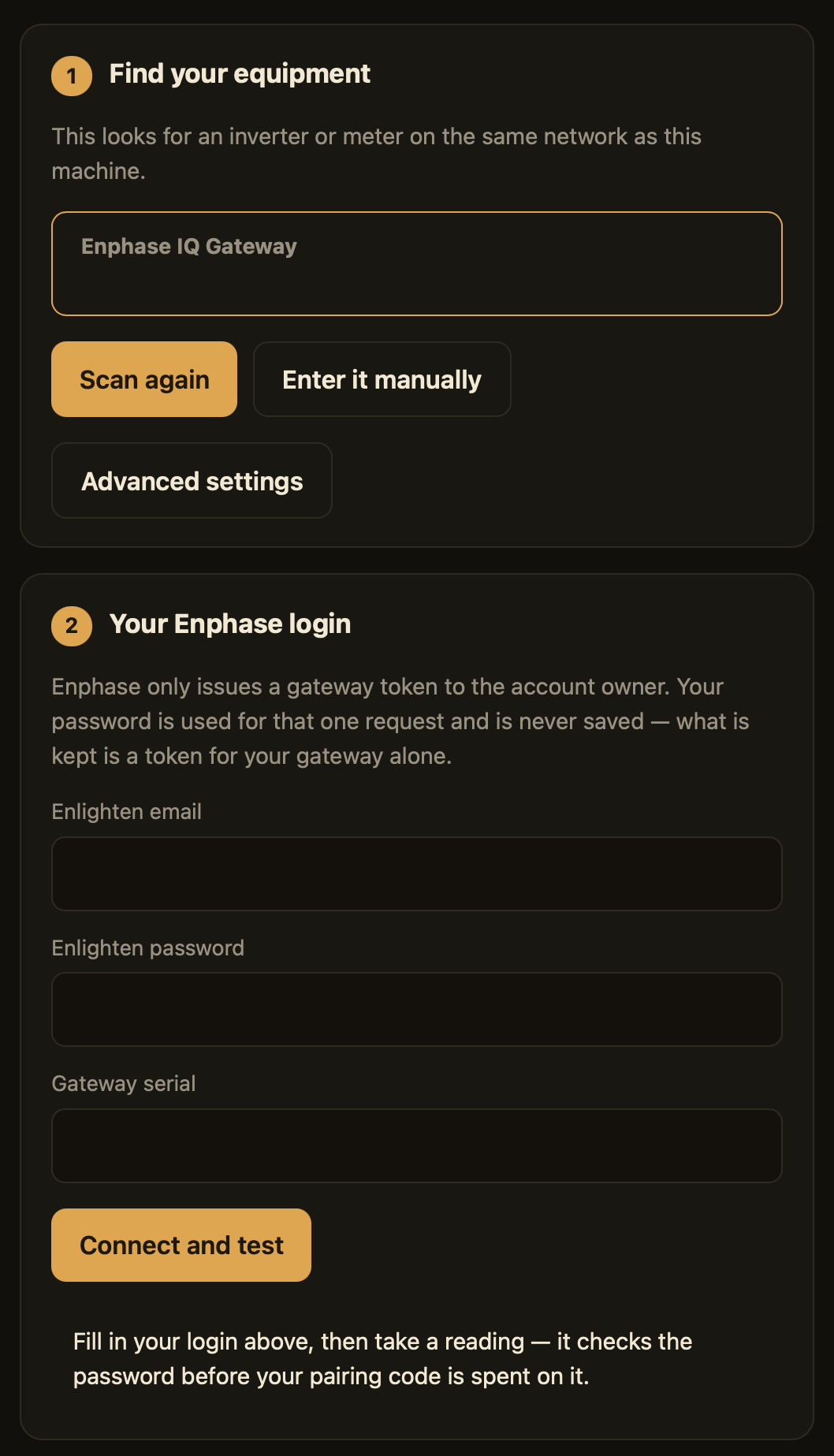

The agent's setup page: an Enphase IQ Gateway found on the network, and the Enphase login form below it — Found on the network, then your Enlighten login

Enphase, shown here, needs a one-time sign-in. Fronius, SolarEdge, SolaX, Sungrow, GoodWe, LuxPower, APsystems, SMA, KOSTAL, Hoymiles, OpenDTU and Victron need no login. Your brand's own guide says which applies.

A NAS "search and install" button skips both --network host, needed to find your inverter, and the /data volume, needed to keep the pairing across updates.

Compose

On a NAS with Compose or Projects — Synology, QNAP, UGREEN — this sets both for you:

services:
  agent:
    image: sunplugapp/sunplug-agent:latest
    network_mode: host
    restart: unless-stopped
    volumes:
      - agent_data:/data

volumes:
  agent_data:

Pairing

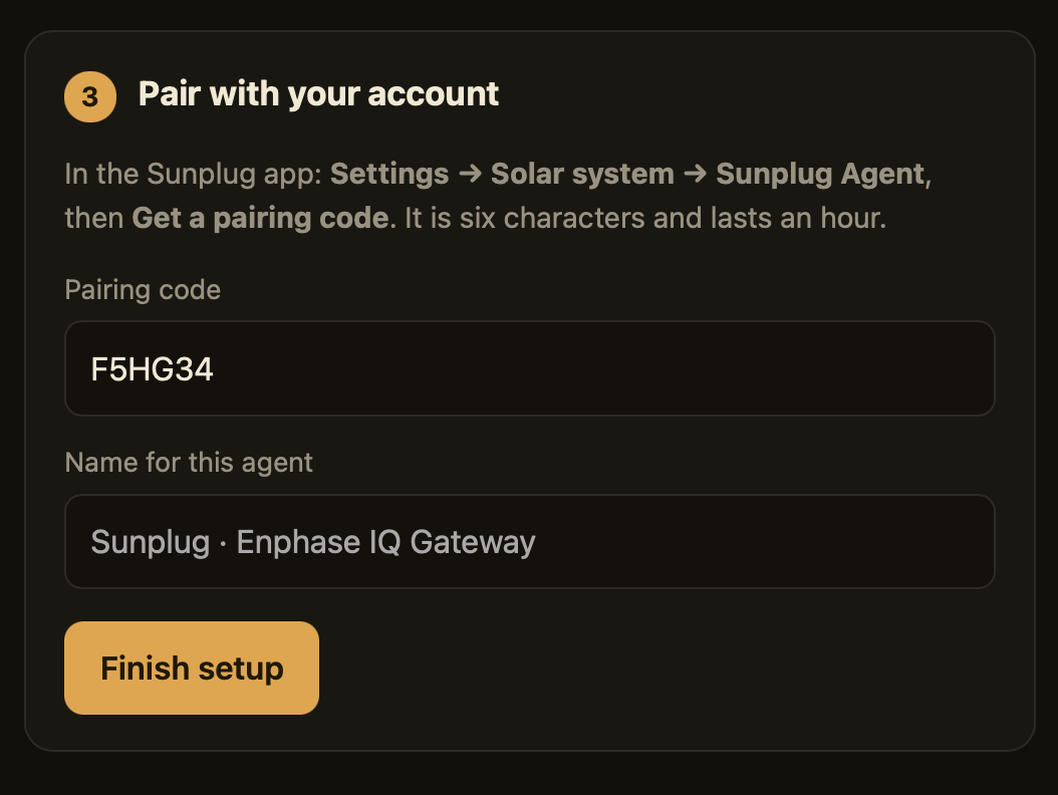

In the app, Settings → Equipment → Add agent shows a six-character code. Enter it on the agent's setup page.

The code is single use and expires after an hour. Each agent can be revoked on its own from Settings, which also shows when it last reported.

Updating

Nothing updates itself. The app tells you when a newer agent is out.

A NAS

Look for re-pull, rebuild or redeploy:

UGREEN (UGOS) — Docker → Project → your project → ⋯ → Settings → Compose configuration → Redeploy, tick Pull the latest image, then Deploy
Synology — Container Manager → Overview shows when an update is waiting; for a project, Project → Action → Build, which re-pulls and recreates
QNAP — Container Station → Images → Pull (sunplugapp/sunplug-agent, tag latest), then Overview → Edit Application → Apply without changing anything
Asustor — Portainer or Docker Engine → Images → Pull, then recreate the container
TrueNAS SCALE — Apps → the app → Update, or edit and save to re-pull a custom app
Unraid — Docker tab → Check for Updates → apply update
Portainer (any NAS) — open the container → Re-pull image → Recreate

Docker or Compose

docker compose pull && docker compose up -d

Or, without Compose:

docker pull sunplugapp/sunplug-agent:latest
docker rm -f sunplug-agent
docker run -d --name sunplug-agent --network host \
  -v sunplug-agent:/data --restart unless-stopped \
  sunplugapp/sunplug-agent:latest

The pairing lives in the /data volume, so it survives.

Checking it works

docker logs -f sunplug-agent

Expect a line every thirty seconds like pv=2.62kW grid=-0.31kW load=2.31kW soc=0.47, and the dashboard's freshness indicator settling to a few seconds.

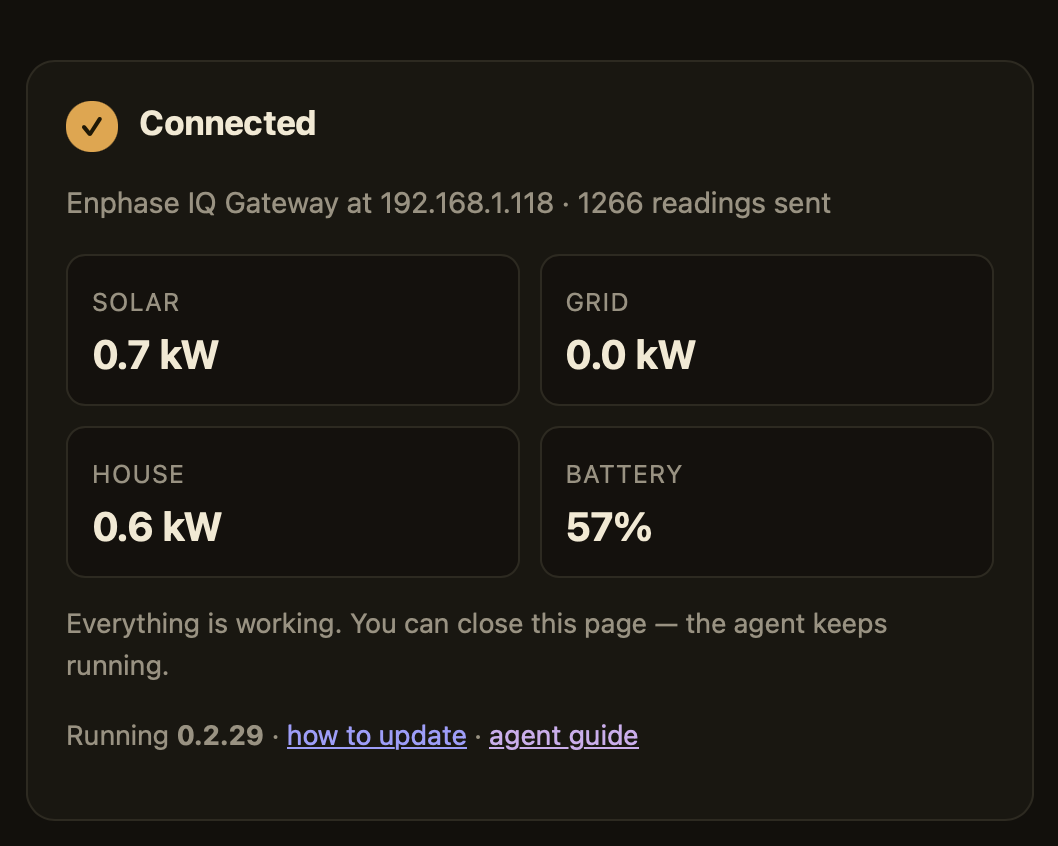

The agent's setup page showing Connected, readings for solar, grid, house and battery, and the running version number — Connected, once pairing is done

When it does not work

Nothing found on the network

The machine is probably on another segment than the inverter — guest Wi-Fi or an IoT VLAN. Enter the address by hand in the setup page's field below the list.

It says it is not set up

The agent is not paired yet: open its setup page and enter the code from the app.

"This agent's access was revoked"

It was removed from Settings → Equipment. Pair it again with a fresh code.

The dashboard still shows cloud data

Once an agent is feeding, Sunplug stops polling your manufacturer's cloud. The equipment page says when.

Stuck? Email me with the log output.
